HLS240 Inclined Belt Stationary Mixing Plant

Model: HLS240 Concrete Mixing Station          Type: Inclined belt

Productivity: 240 cbm/hour                               Weight: 82,000kg

Matched Mixer: JS3000                                     Total power: 270kw


  Contact Now
Product Details

  The concrete blending plant is particularly divided into 4 components: gravel feeding, powder feeding, water and admixture feeding, transfer blending and storage. the entire body of the plant is fabricated from metallic form, and the first rate h-usual metal now not first-class has a cute look, but additionally strengthens the overall structural strength of the concrete mixing plant, which is straightforward to put in and can be carried out to diverse complicated terrain structures.

  The concrete blending plant has appropriate blending universal overall performance. the system adopts spiral double horizontal shaft forced mixing mainframe, which now not most effective has robust mixing average overall performance, but also can achieve correct mixing effect for dry hardness, plasticity and diverse proportions of concrete and the mixture is uniform and excessive efficiency.

 The concrete blending plant no longer best has high-quality blending fundamental system, but moreover has numerous first rate accessories, along with screw conveyor, measuring sensor, pneumatic additives, and so forth. the ones additives make sure the high reliability, accurate measuring skills and lengthy carrier lifestyles of the concrete mixing plant inside the operation system. On the identical time, every protection part of the concrete mixing plant is ready with a taking walks platform or inspection ladder and sufficient area for maneuvering. The integration primary machine can be equipped with excessive-stress computerized cleansing device, with functional oil scarcity and over-temperature automatic alarm feature, that's available for system safety.

Model

HLS60

HLS90

HLS120

HLS180

HLS240

Rated Productivity(m³/h)

60

90

120

180

240





Mixer

Mode

JS1000

JS1500

JS2000

JS3000

JS4000

Driving Power (KW)

2*18.5

2*30

2*37

2*55

2*65

Discharge Capacity (L)

1000

1500

2000

3000

4000

Max Aggregate Size (MM)

≤60/80

≤60/80

≤60/80

≤60/80

≤60/80

Batching Machinery Size (m³)

15

15

20

25

40(underground)



Measuring Accuracy

Aggregate

2%

2%

2%

2%

2%

Cement

1%

1%

1%

1%

1%

Water

1%

1%

1%

1%

1%

Additive

1%

1%

1%

1%

1%



Maximum Weighing (kg)

Cement

800

1000

1000

1800

2400

Water

400

400

500

800

     1000

Additive

25

25

40

70

100

Discharge Height (M)

4.2

4.2

4.2

4.2

4.2

Total Power(kw)

90

125

160

200

270

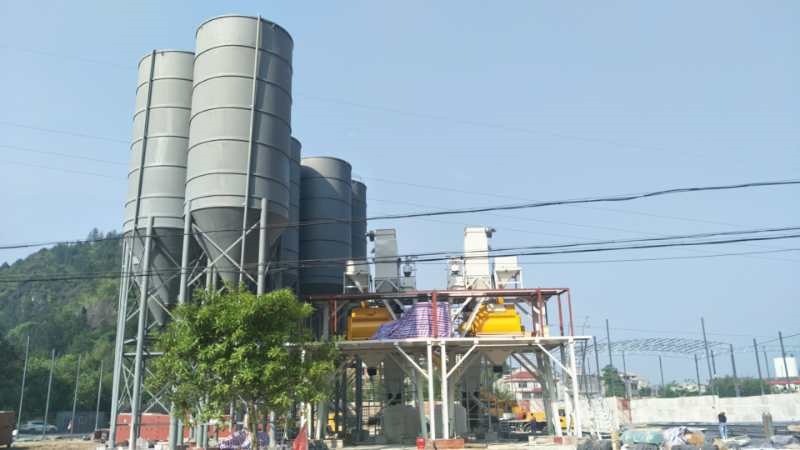

HLS240 Inclined Belt Stationary Mixing Plant

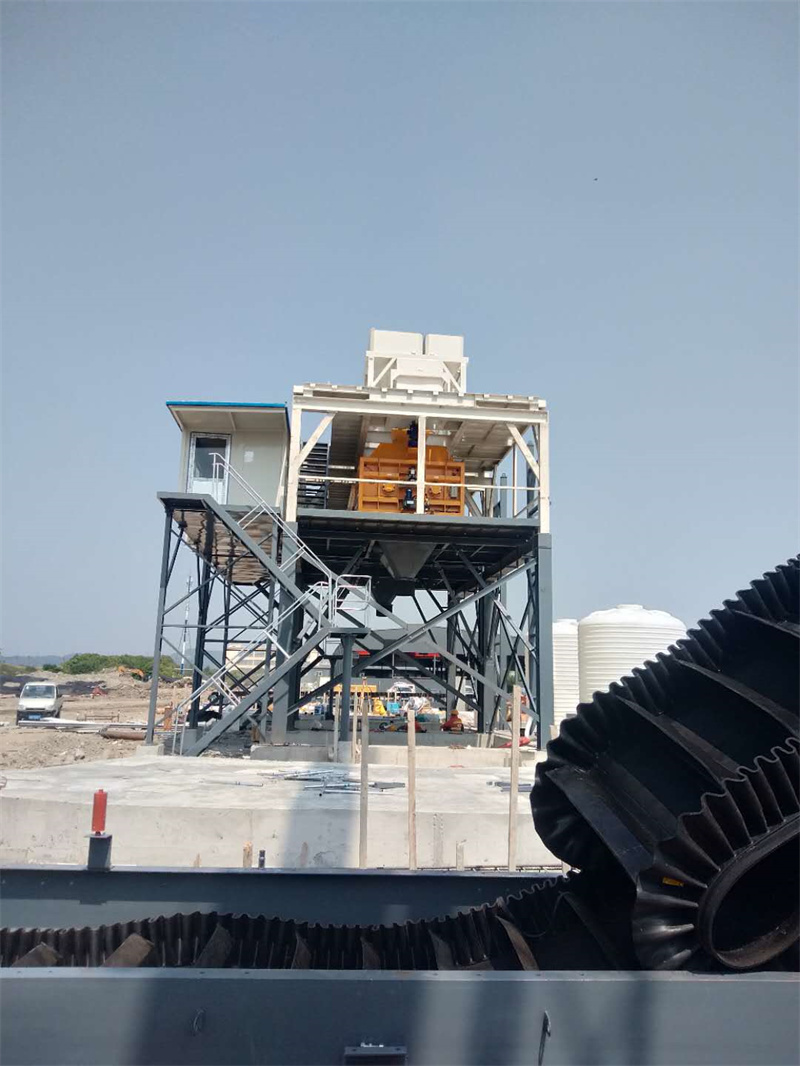

HLS240 Inclined Belt Stationary Mixing Plant

FAQ

1. Whats the difference of the HZS and HLS Concrete Mixing Station?

HZS series means the aggregate lifting type is the skip hoist and the HLS series is the inclined belt.

2. How we choose the size of the concrete mixing station?

Usually we suggest customer choose the size and type according to the coverage area and the productivity of per hour. For example, customer has big space with 200 cubic meters concrete each day, then we can suggest the HLS240 concrete mixing station.

3. Whats the advantages of the bolted cement silo?

Bolted cement silo is not only designed for foreign customer but also for our domestic market.

For foreign customer it can save delivery space which will reduce the freight charges and for domestic market it can protect the environment because it avoid the outdoor welding.

4. What customer should provide before we design?

Commonly, we need the know how many kinds of the aggregate, the powder, additive type. This is the most important. What’s more the language and voltage is necessary.

5. The installation

About the installation we will arrange engineer to guide and train the operate workers, so no worry about this.

6. Payment terms and production cycle

30% prepayment when place the order, the balance should pay before delivery. Usually the delivery time is 20 days after the prepayment.
