25 cbm Concrete Mixing Station

HZS25 Concrete Mixing Station is the smallest size of the concrete mixing station.

We adopts the 4*4 aggregate batching machinery with the skip hoist aggregate lifting type.

This structure covers little area which can solve customer's concern of the earth square.

For foreign market especially for some undeveloped countries we supply the broken bag hopper for bagged cement, aslo we have the bolted cement silo for bulk cement which can both meet customer's requirements.

The JS500 horizontal concrete mixer has the high efficiency, professional design and more than 20 years experience.

Contact Now

Product Details

Brief Introduction:

By the composition of feeding, mixing,electrical control system and other related parts, the HZS25 concrete mixing station is a full automatic complete equipment with high precise microcomputer control system, as well as single manual control, proportion storage, automatic compensating and printing system which can fo the schedule work automatically.

This plant can fit the demands of the industry, civil construction, highway, railway,bridge.

Model: HZS25 Rated Productivity: 25 CBM/H

Discharge height: 3.8M Matched mixer: JS500

Total power:40KW Total weight:15,000KG

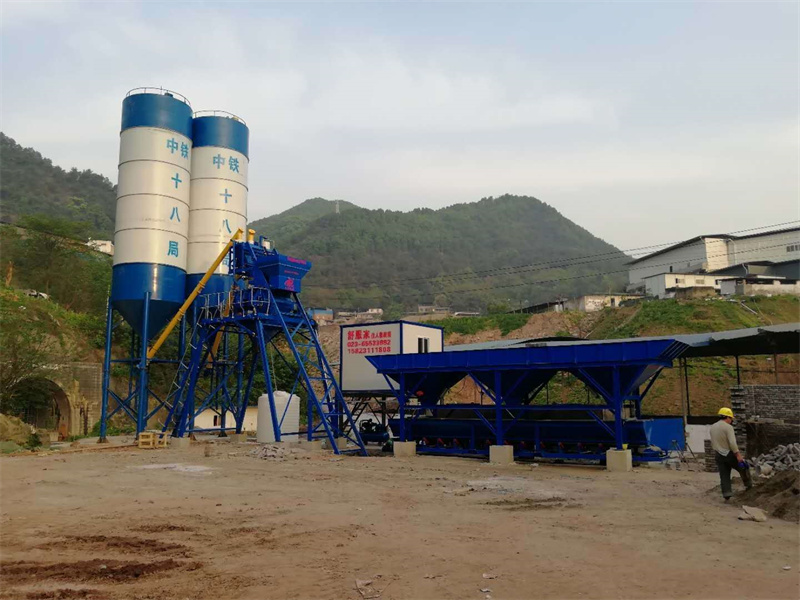

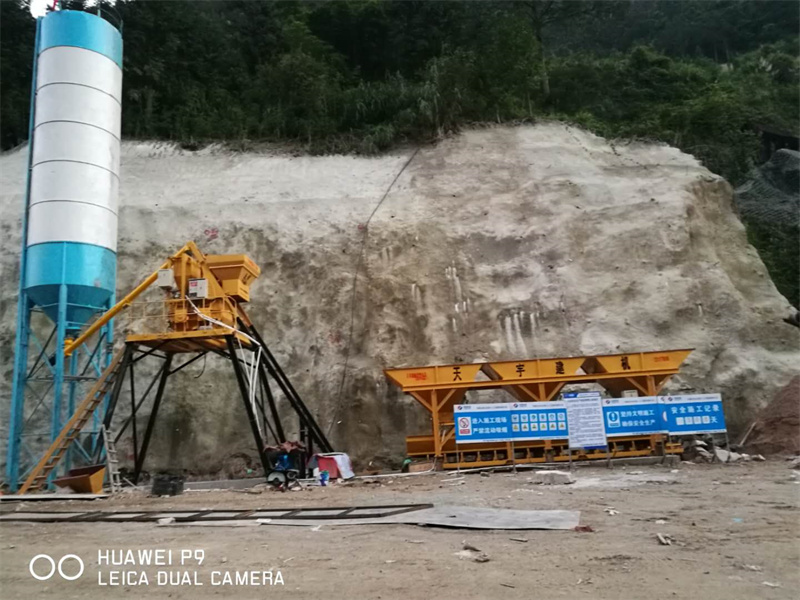

Picture Gallery:

concrete mixing station

Parameters:

Model			HZS25	HZS40	HZS60	HSZ90	HZS120
Rated Productivity(m³/h)			25	40	60	90	120
Mixer	Mode		JS500	JS750	JS1000	JS1500	JS2000
	Driving Power (KW)		18.5	30	2*18.5	2*30	2*37
	Discharge Capacity (L)		500	750	1000	1500	2000
	Max Aggregate Size (MM)		≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Batching Machinery Size (m³)			4	4	6	8	15
Measuring Accuracy		Aggregate	2%	2%	2%	2%	2%
		Cement	1%	1%	1%	1%	1%
		Water	1%	1%	1%	1%	1%
		Additive	1%	1%	1%	1%	1%
Maximum Weighing (kg)		Cement	350	500	500	800	1300
		Water	200	200	200	430	500
		Additive	20	25	25	30	40
Discharge Height (M)			4.2	4.2	4.2	4.2	4.2
Total Power(kw)			40	53	80	107	140

Advantages:

1. Modular layout, smooth to disassemble HZS25 concrete batching plant adopts mixed shape and modular unit, which may be very convenient to install and relocate.

2. High efficiency the main machine of HZS concrete blending plant adopts JS500 double horizontal shaft compelled concrete mixer, which has desirable blending great and high performance.

3. Particular measurement the combination batching adopts pld800 concrete batching system, which has correct size and excessive manufacturing efficiency. powder and water are measured by way of digital scale, with excessive precision.

FAQ:

1. How we choose the size of the concrete mixing station?

Usually we suggest customer choose the size and type according to the coverage area and the productivity of per hour. For example, customer has big space with 200 cubic meters concrete each day, then we can suggest the HLS240 concrete mixing station.

2. What’s the advantages of the bolted cement silo?

Bolted cement silo is not only designed for foreign customer but also for our domestic market.

For foreign customer it can save delivery space which will reduce the freight charges and for domestic market it can protect the environment because it avoid the outdoor welding.

3. What customer should provide before we design?

Commonly, we need the know how many kinds of the aggregate, the powder, additive type. This is the most important. What’s more the language and voltage is necessary.

4. The installation

About the installation we will arrange engineer to guide and train the operate workers, so no worry about this.

5. Payment terms and production cycle

30% prepayment when place the order, the balance should pay before delivery. Usually the delivery time is 20 days after the prepayment.
