PL1200 Aggregate Mixing Machine

The series of PL Concrete Batching as a kind of forward automatic batching machine matching with mixer machinery, can complete the batching process with sand, stone material automatically according to customer requirement.

This machine is consists of storage hopper, weighing system, feeding system, electric controlling system .The way of feeding can be divided into pneumatic gate and belt type.

Adopt electric weighing, computer controlling, digital showing, wired remote controlling, this machine has many advantage such as accurate weighing, high precise feeding, high precise batching, high speed, strong control function and easy to operate.

For this machine series, there are many forms of structure, it’s combining forms is flexible, they can match with some corresponding concrete mixer forming different kinds of concrete batching plant.

Contact Now

Product Details

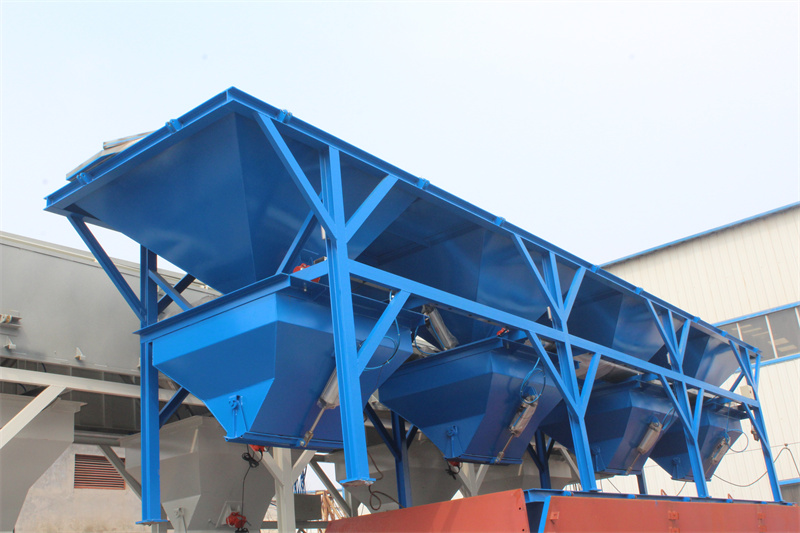

Pl1200 aggregate batching equipment

Pl1200 combination batching machinery adopts the 4 cubic meters hopper which generally healthy with four hoppers. the four*4 is regularly used in the hzs25 and hzs40 concrete blending station.

For this size machinery our engineers recommend clients pick the belt weighing kind that's more effortlessly bring together and function. when we transport we generally installation the entirety together so one can more handy for clients.

Model	PL800A/B	PL800C/D	PL800E	PL800F/U	PL1200G	PL1600	PL2400
Scale hopper capacity (L)	800	800	800	800	1200	1600	2400
Storage bin capacity (m³⁾	2×2.5	3×2.5	4×2.5	3×4	3×4	3×6/3×15	3×8/3×15
Total power (KW)	6.6	9.6/6.6	12.6	6.6	3	5.5/7.5	7.5
Measuring accuracy(％)	±2	±2	±2	±2	±2	±2	±2
Weighting mode	Electronic scale
Weight (kg)	2380	3420	4600	4000	4040	4140/7050	5720/7050

Precast Mini Concrete Batching Plant

Our TIANYU people still believe the theme of quality surviving, technology developing, supplying the best production, guaranteeing the first service, satisfying the customer's request. Quality occupies the market, good reputation win the customer is our pursuits.

We will insist on our themes and pursuits and give our customer the best service and satisfied production.

From this, we want to making our services into the whole processing of products.
