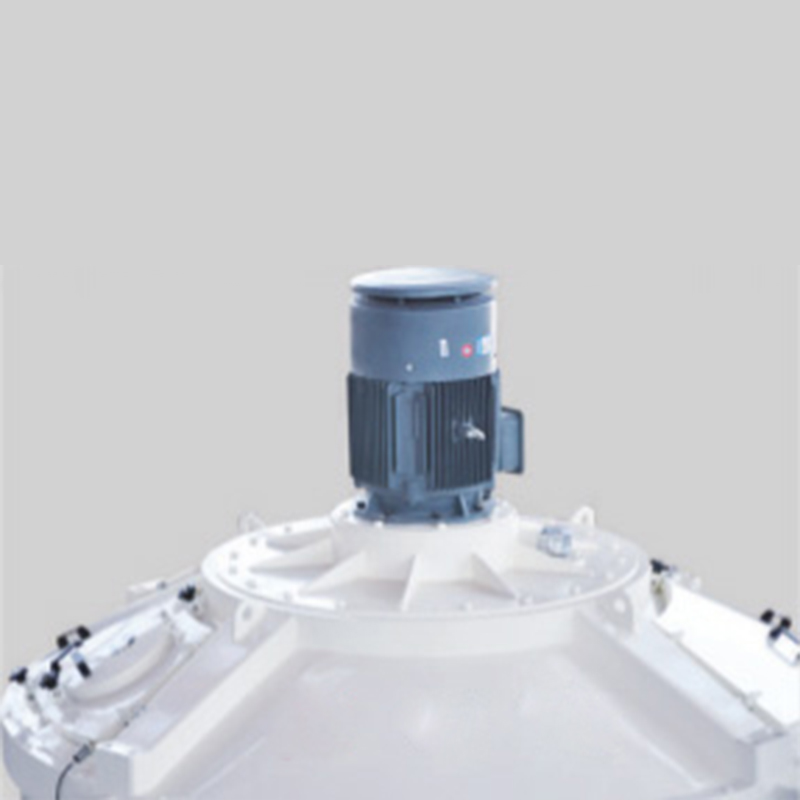

1250L Planetary Mixer

The in particular developed gearbox can distribute the strength stability to every mixing device correctly, which can make certain low noise transportation of mixing schools and universities even beneath harsh manufacturing situations. on the equal time more space-saving, in comparison with the traditional gearbox, the preservation vicinity of the mixer can be stepped forward by way of 30%.

Flexible coupling and hydraulic coupling (optional object) can successfully defend the transmission device from the effect of overload.

How to choose the mixer type?

  MPC vertical shaft planetary mixer and JS double horizontal shaft forced mixer have in common that they can be used as the main machine of concrete mixing plant.

The difference lies in the design and working principle of the mixing system

  1.The mixing system of the double horizontal shaft mixer is composed of two horizontal mixing shafts which drive the mixing arms and blades to mix the materials forcibly through rotation.

  2.The structure of the mixing system of vertical shaft mixer is standing up, and the mixing arms and mixing blades are distributed in all directions at a reasonable angle. In operation, with the rotation of the main shaft, each mixing blade does planetary movement. When running, the spindle rotates and drives the blades to squeeze and turn the material in a compound action such as compulsory mixing. The mixing process has no dead angle, which is suitable for mixing materials with small particle size and high requirements for uniformity.

  In terms of function and application, vertical shaft mixer can mix more kinds of materials, suitable for mixing all kinds of dry and hard materials, and can be used in refractory materials, pipe piles, prefabricated components, ceramic granules, brick making and other fields. And the double horizontal shaft mixer is usually only used for concrete mixing production.
