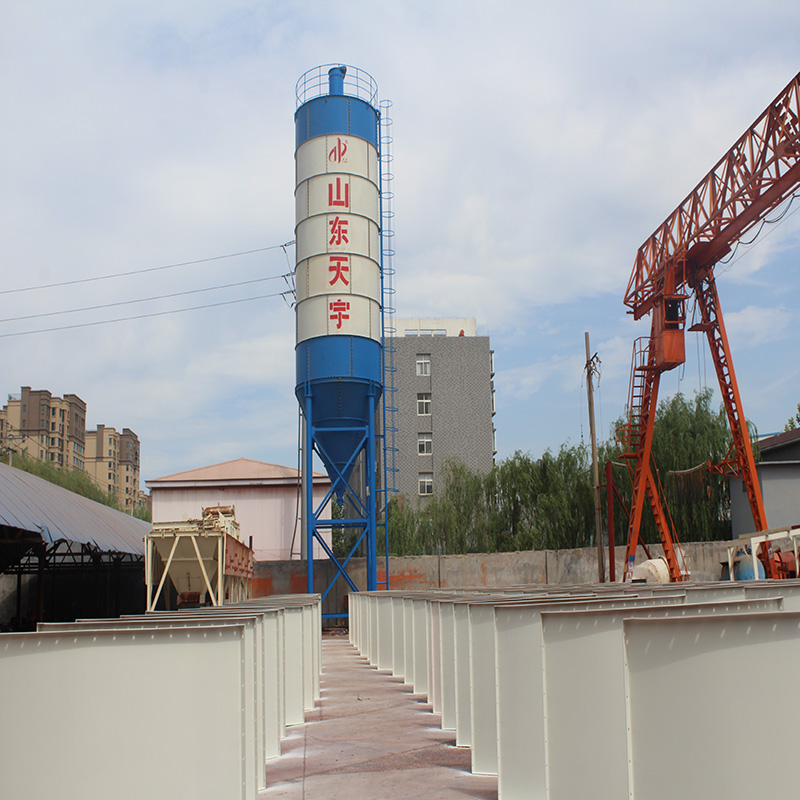

SNC50 Ton Cement Silo

Model: SNC50 Discharge Height: 4200m

Diameter: 3100mm Volume: 38m³

Capacity: 50 Ton Container: Two sets (40HC)

Product Details

The bolted cement silo is one type of silos which designed into pieces. It consists of the scale from 50 ton to 300 ton. With this sort of silo clients can deploy by means of themselves in particular for foreign website online. One 40HQ can hold 2 units of the 50 ton cement silo which save the delivery costs.

Commonly the bolted cement silos collectively with our concrete mixing station can acquire customer's necessities of concrete supply.

SNC50 Ton Cement Silo Equipment

NO.	Model	Discharge height	Diameter of body	Parts of body	Material size	m³	（t）
1	SNC50	4200 mm	3100mm	4*3	upper coneδ3，body partδ3，lower coneδ4 ,legs φ219*4	38	3.4
2	SNC100	4200 mm	3100mm	4*6	upper coneδ4,upper and lower partδ4,body partsδ3，lower coneδ5+δ4,legs φ219*5	70	5
3	SNC150	4200 mm	3100mm	4*9	upper coneδ3,upper of bodyδ4,body parts δ3,lower coneδ5,lower coneδ6+δ4, legs φ219*6	102	6.5
4	SNC200	6500 mm	4400mm	6*6	upper coneδ4，the top and bottom piece of bodyδ4.5，other body part δ4，lower coneδ6 +δ6+δ4,legsφ273*7	147	10.7
5	SNC300	650 0mm	5300mm	8*6	upper coneδ6,bodyδ6,lower coneδ8 +δ6+δ5,legs φ325*8	219	17

Body Parts of Silos

Cement Silo

Lower and Upper Cone of Silos

Bolted Cement Silos

Support Legs

FAQ:

1. What’s the difference of the whole type and the bolted type cement silo?

The whole type silo is usually welded in the customer's site which can save the delivery charges and the limit of some road. The bolted type is for the foreign and some site not allow weld outside.

2. What’s the advantages of the bolted cement silo?

Bolted cement silo is not only designed for foreign customer but also for our domestic market.

For foreign customer it can save delivery space which will reduce the freight charges and for domestic market it can protect the environment because it avoid the outdoor welding.

3. What customer should provide before we design?

Commonly, we need the know the discharge height,the diameter, the total height and your country's voltage and frequency.

4. The installation

About the installation we will send you the installation videos, it is very easy and convenient for you to assemble.

5. Payment terms and production cycle

30% prepayment when place the order, the balance should pay before delivery. Usually the delivery time is 20 days after the prepayment.
