HZS25 Hopper Lift Concrete

HZS25 type concrete mixing station (concrete batching plant) is the smallest size of the JS horizontal concrete mixer. It is suitable for own-used or for some small countries. It covers small area and easy for installation and operation. We adopts our own design of the concrete mixer which has more than 20 years experience. Bolted cement silo with screw conveyor can work well for the bulk cement supply. For some customers they use the bagged cement we also can provide the broken bag hopper.

Contact Now

Product Details

Advantage

1.Concrete mixing plant adopts combined shape and modular unit, which could be very convenient to put in and relocate.

2. High blending best the primary gadget of hzs25 concrete mixing plant adopts js500 double horizontal shaft compelled concrete mixer, which has good mixing quality and excessive performance.

3. Specific measurement the aggregate batching adopts pld800 concrete batching device, which has accurate dimension and high production efficiency. powder and water are measured by electronic scale, with high precision.

Feature

1.With the JS horizontal twin-shaft concrete mixer.

2.Skip hoist lifting system with small coverage area.

3.Belt wighing concrete batching machinery which can with two or three or four hoppers.

4.Mathced with bolted cement silo for bulk cement and broken bags hopper for bagged cement.

Parameters

Model: HZS25 Type: Skip Hoist

Productivity: 25 cbm/hour Weight: 15,000kg

Matched Mixer: JS500 Total power: 40kw

Model			HZS25	HZS40	HZS60	HSZ90	HZS120
Rated Productivity(m³/h)			25	40	60	90	120
Mixer	Mode		JS500	JS750	JS1000	JS1500	JS2000
	Driving Power (KW)		18.5	30	2*18.5	2*30	2*37
	Discharge Capacity (L)		500	750	1000	1500	2000
	Max Aggregate Size (MM)		≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Batching Machinery Size (m³)			4	4	6	8	15
Measuring Accuracy		Aggregate	2%	2%	2%	2%	2%
		Cement	1%	1%	1%	1%	1%
		Water	1%	1%	1%	1%	1%
		Additive	1%	1%	1%	1%	1%
Maximum Weighing (kg)		Cement	350	500	500	800	1300
		Water	200	200	200	430	500
		Additive	20	25	25	30	40
Discharge Height (M)			4.2	4.2	4.2	4.2	4.2
Total Power(kw)			40	53	80	107	140

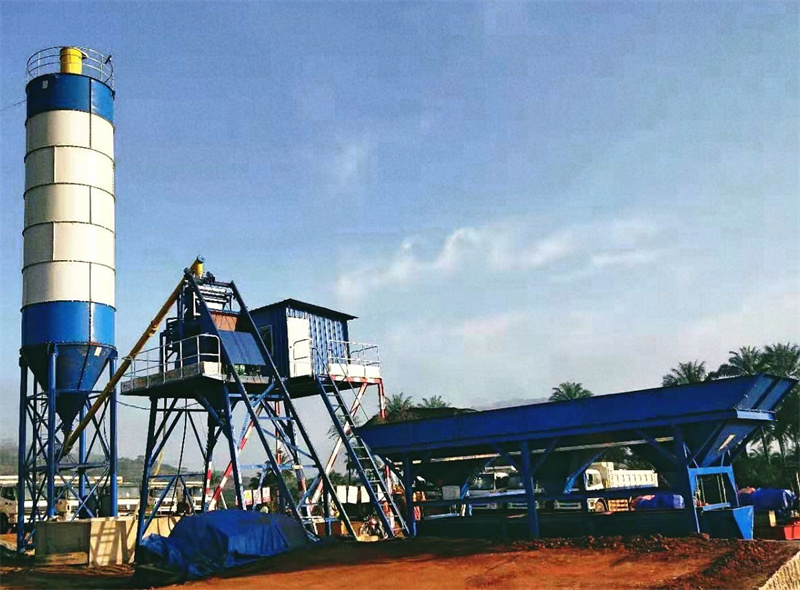

Photos

25-75m3/h Mobile Concrete Plant

Service

1.Enough spare parts. We have tour own designed concrete mixer so the mixer parts is produced by ourselves.

2.Professional after-salves engineers. Our engineers have more than 15 years experiences of installation and maintenance.

3.Design concept. Our factory has more than 20 mechaanical engineers, they need to work in workshop at least three months then they are familiar with each parts. And if you have your own design idea you can discuss with our enginner to get their profession suggestions.

FAQ

1. What’s the difference of the HZS and HLS Concrete Mixing Station?

HZS series means the aggregate lifting type is the skip hoist and the HLS series is the inclined belt.

2. How we choose the size of the concrete mixing station?

Usually we suggest customer choose the size and type according to the coverage area and the productivity of per hour. For example, customer has big space with 200 cubic meters concrete each day, then we can suggest the HLS240 concrete mixing station.

3. What's the advantages of the bolted cement silo?

Bolted cement silo is not only designed for foreign customer but also for our domestic market.

For foreign customer it can save delivery space which will reduce the freight charges and for domestic market it can protect the environment because it avoid the outdoor welding.

4. What customers should provide before we design?

Commonly, we need the know how many kinds of the aggregate, the powder, additive type. This is the most important. What’s more the language and voltage is necessary.

5. The installation

About the installation weswill arrange engineer to guide and train the operate workers, so no worry about this.

6. Payment terms and production cycle

30% prepayment when place the order, the balance should pay before delivery. Usually the delivery time is 20 days after the prepayment.
